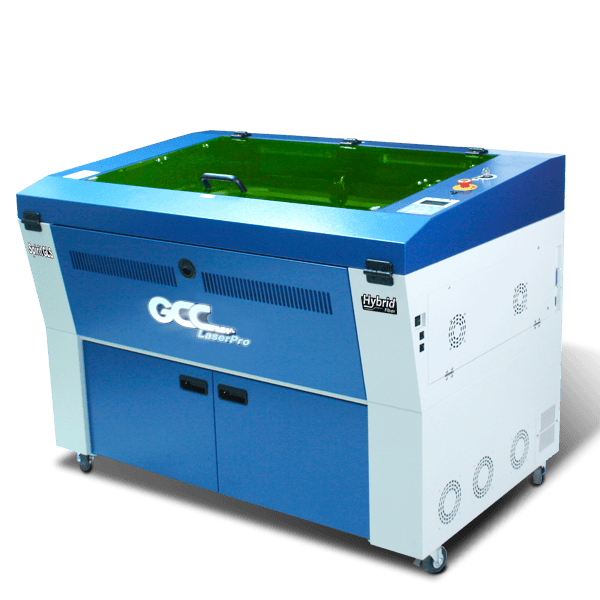

Professional CO₂ laser engraver focused on the operator: The Spirit impresses with innovative features, reliable mechanics, and outstanding laser quality.
Ideal solution for growth and productivity: Designed for precise engraving and cutting applications in daily production use.

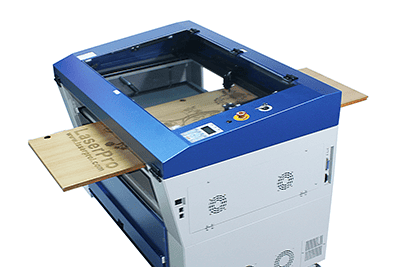

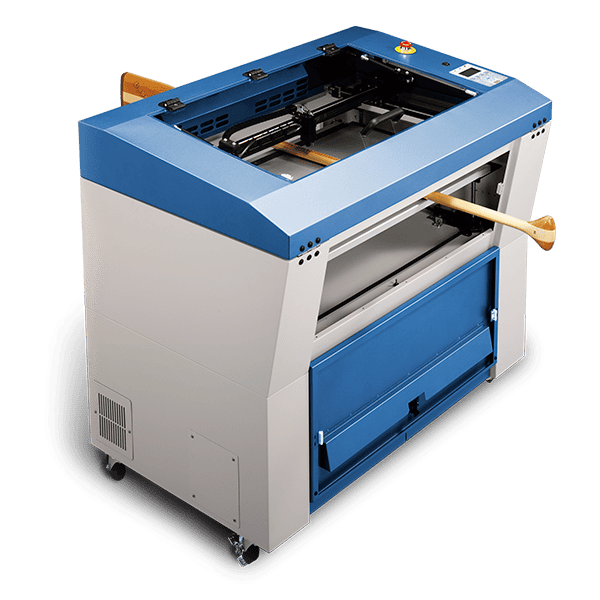

Flexible workspace with feed-through function: Suitable for series production, lettering, and large-format workpieces.
High accuracy and consistent results: Closed-loop control, automatic Z-axis, and precise control.

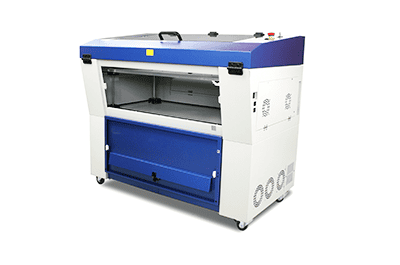

Proven GCC LaserPro quality: Durable industrial components for reliable continuous operation.

Spirit – Technical Data
Workspace and Mechanics

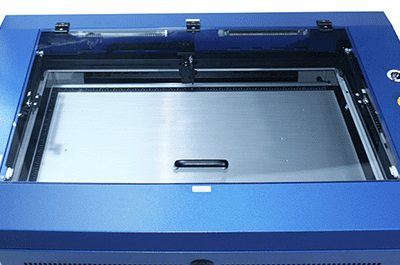

Workspace	640 × 460 mm expandable to 740 × 460 mm
Max. workpiece size (all doors closed)	762 × 482.6 × 165 mm
Max. workpiece size (all doors open, passage)	762 × ∞ × 165 mm
Table size	790 x 530 mm
Dimensions (W × D × H)	1.125 x 720 x 1.005 mm

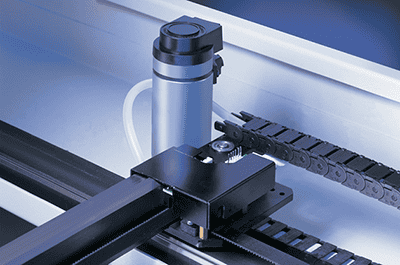

Drive system	DC Servo System with Closed-Loop Control
Max. Motor speed	1.52 m/s
Laser, Power, and Precision
Laser source	CO₂ laser 10.6 µm: 12–100 W CO₂ Laser 9.3 µm: 20 W or 60 W
Cooling	Air-cooled, ambient temperature 15–30 °C
Positional accuracy	± 0.254 mm or ± 0.1 % of the movement (whichever is greater)
Speed control	0.1–100 %, up to 16 color-linked speed parameters
Performance management	0–100 %, up to 16 color-linked performance parameters
Engraving functions	256 grayscale image processing

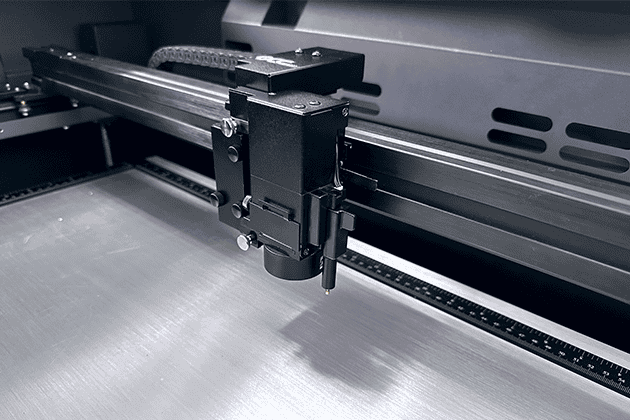

Z-axis	Automatically
Optics, Resolution, and Interfaces
Focus lens	Standard 2.0″, optional 1.5″, 2.5″, 4.0″
Resolution (DPI)	125, 250, 300, 380, 500, 600, 760, 1000, 1500

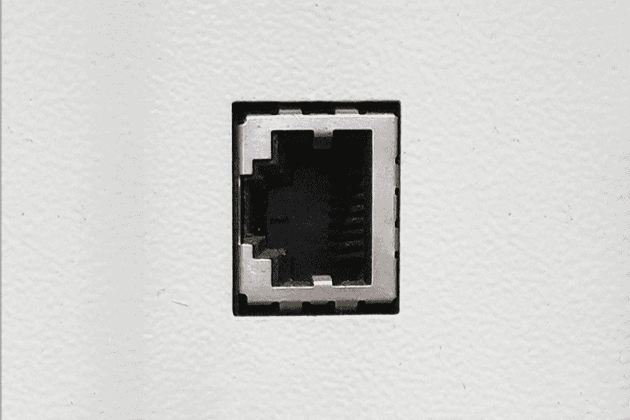

Interfaces	10Base-T Ethernet USB-A 2.0 (Storage up to 32 GB, FAT) USB-B 2.0 (PC Connection)

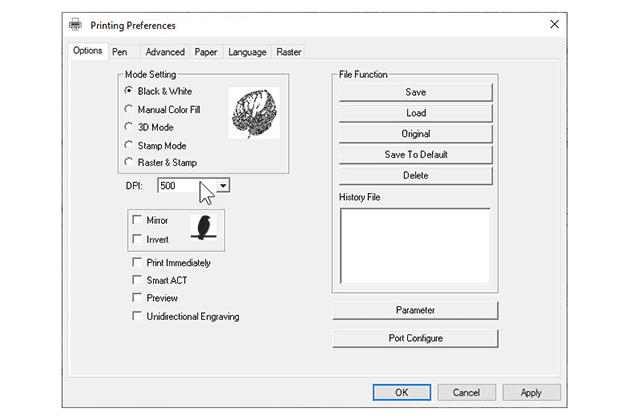

Operating systems	Microsoft Windows

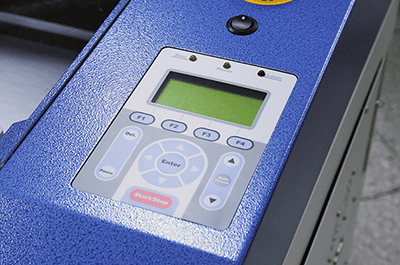

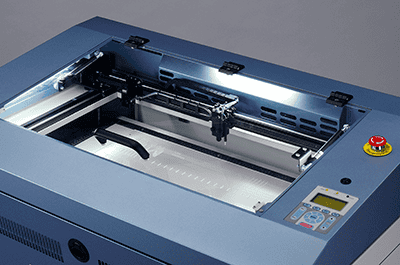

Ad	4-line LCD (Filename, Work Time, Power, Speed, Loaded Files, Setup and Diagnostics)
Safety and Operations

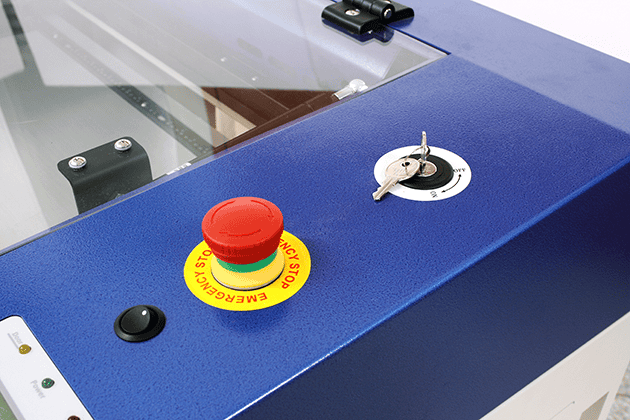

Security Standards	Class 1 Laser (EN60825) Class 2 Laser (CDRH) Machinery Directive 2006/42/EC Class 4 Laser (CDRH, with optional pass-through module)
Power connection	Laser under 80 W: 100–240 V AC, 50–60 Hz, max. 15 A Laser from 80 W: 200–240 V AC, 50–60 Hz, max. 15 A
Exhaust system	External extraction required, min. 640 m³/h, negative pressure 2.3 kPa (e.g. Pure-Air PA-1000FS)
