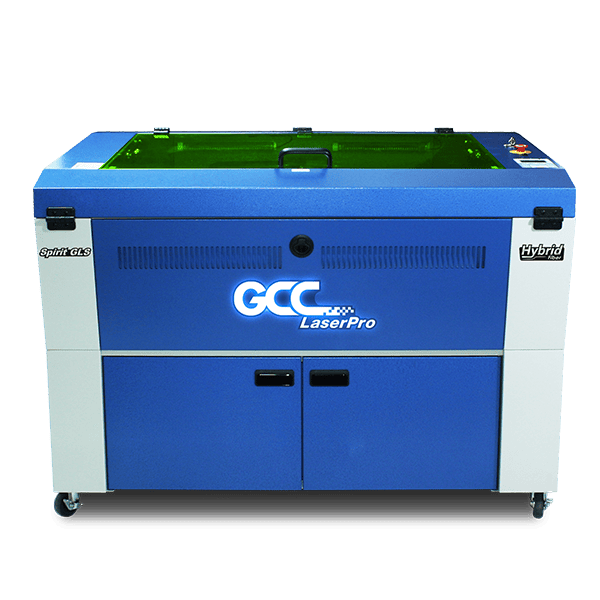

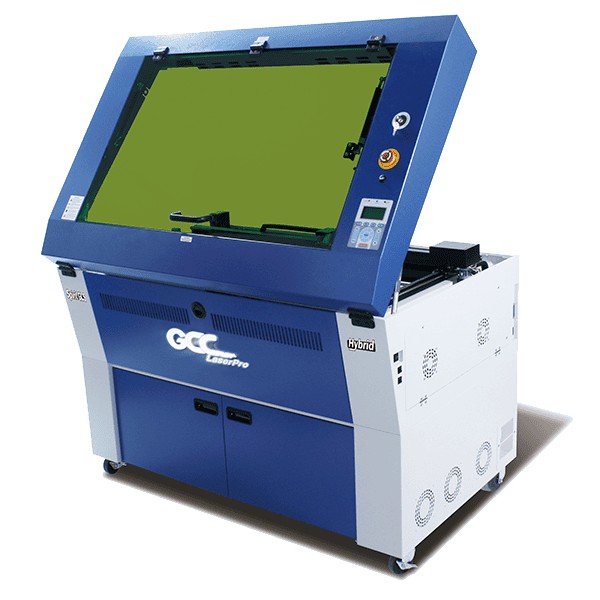

Spirit GLS Hybrid Laser Engraver

Category | Brand GCC

Hybrid laser engraving machine with CO2 and fiber laser as the flagship of the Spirit series.
Enables engraving, cutting, and marking on organic materials and metals in one system.
Ideal for professional users with the highest demands on versatility and reliability.

Beschreibung

  • Flagship of the Spirit series: The Spirit GLS Hybrid combines the award-winning CO₂ technology with an integrated fiber laser option in a single system.

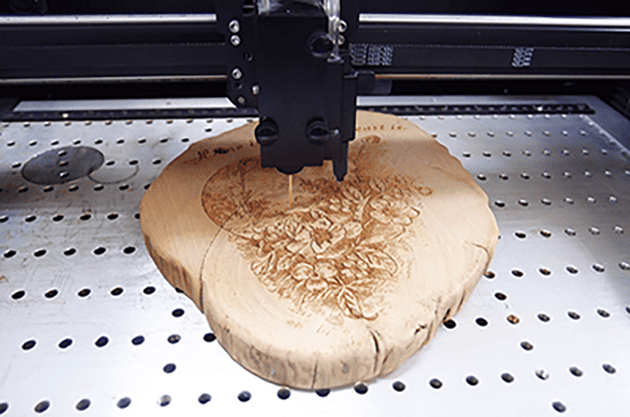

  • Maximum versatility for engraving, cutting, and marking: Suitable for organic materials such as wood and acrylic as well as metals.
  • Hybrid laser technology for advanced applications: CO₂ and fiber lasers in a single machine enable maximum flexibility without changing systems.
  • Industry-proven performance and precision: High speed, exact positioning, and consistent quality in continuous professional operation.
  • Proven GCC LaserPro quality: Designed for maximum reliability, safety, and long-term productivity.
Spirit GLS Hybrid – Technical Data
Workspace and Mechanics
Workspace 860 x 610 mm
expandable to 960 × 610 mm
Max. workpiece size (all doors closed) 990 × 635 × 177 mm
Max. workpiece size (all doors open, clearance) 990 × ∞ × 177 mm
Table size 1.025 × 705 mm
Dimensions (W × D × H) 1.365 × 880 × 1.010 mm
Drive system DC Servo System with Closed-Loop Control
Max. Motor speed 2,03 m/s
Laser, Power, and Precision
Laser source CO₂ laser: 30–100 W, 10.6 µm
Fiber laser: 20–60 W
Cooling Air-cooled, ambient temperature 15–30 °C
Positional accuracy ± 0.254 mm or ± 0.1 % of the movement (whichever is greater)
Speed control 0.1–100 %, up to 16 color-linked speed parameters
Performance management 0–100 %, up to 16 color-linked performance parameters
Engraving functions 256 grayscale image processing
Z-axis Automatically
Optics, Resolution, and Interfaces
Focus lens Standard 2.0″, optional 3.0″ and 4.0″
Resolution (DPI) 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Interfaces 10Base-T Ethernet
USB-A 2.0 (Storage up to 32 GB, FAT)
USB-B 2.0 (PC Connection)
Operating systems Microsoft Windows
Ad 4-line LCD (file name, working time, power, speed, setup and diagnostics)
Safety and Operations
Security Standards Class 1 Laser (EN60825)
Class 2 Laser (CDRH)
Machinery Directive 2006/42/EC
Class 4 Laser (CDRH, with optional pass-through module)
Power connection Under 80 W: 100–240 V AC, 50/60 Hz, max. 15 A
From 80 W: 200–240 V AC, 50/60 Hz, max. 15 A
Exhaust system External extraction required, min. 800 m³/h, negative pressure 2.3 kPa (e.g., Pure-Air PA-1500FS)
