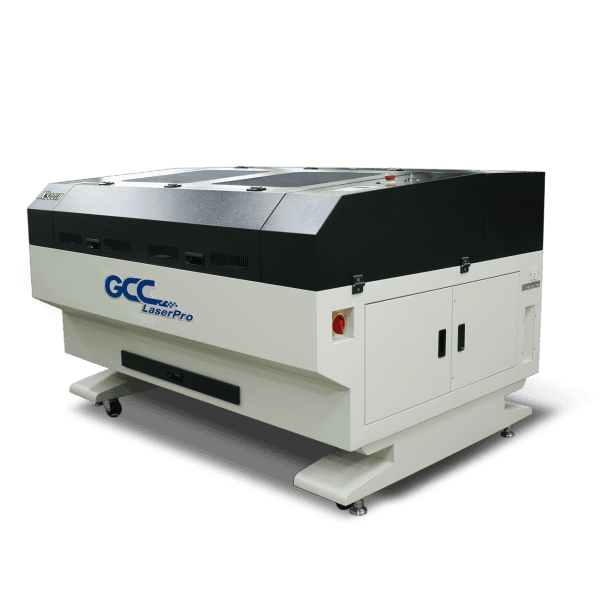

The GCC X500III Pro Laser Cutter is a powerful CO2 laser cutter for industrial applications. With up to 150 W of power and a generous working area of 1300 × 916 mm, the laser cutter is ideal for precise cutting and engraving of a wide variety of materials.
The GCC X500III Pro Laser Cutter was specially developed for professional applications and offers the highest performance and precision. Thanks to modern CO2 laser technology and closed-loop DC servo motors, the laser cutter operates particularly quickly and precisely.
With a work surface of 1300 × 916 mm and laser powers of up to 150 W is suitable for GCC X500III Pro Laser Cutter ideal for industrial cutting and engraving applications.
An integrated beam expander ensures a uniform line width and significantly improves cutting quality. In addition, the machine enables the cutting of up to 20 mm acrylic in a single pass.
Why the GCC X500III Pro Laser Cutter convinces
The GCC X500III Pro Laser Cutter combines high performance, precision, and reliability in a single industrial laser system. Thanks to its robust design and advanced control technology, the laser cutter is ideally suited for serial production, sign making, and industrial manufacturing.
| Model | X500III Pro |
| Laser power | 100 W / 130 W / 150 W CO2 Laser |
| Cooling | Water-cooled |
| Work area without cutting table | 1,300 × 916 mm |
| Work area with aluminum grid cutting table | 1.265 × 895 mm |
| Workspace with honeycomb bed | 1.240 × 820 mm |
| Max. workpiece size without cutting table | 1.355 × 910 × 55 mm |
| Max. workpiece size with doors open | 1.355 × ∞ × 55 mm |
| Max. workpiece size with cutting table | 1.355 × 910 × 30 mm |
| Dimensions (W × D × H) | 1,900 × 1,400 × 1,200 mm |
| Drive | Closed-Loop DC Servocontrol |
| Max. Motor speed | 1.01 m/s |
| Speed control | 0.1–100 %, up to 16 color-linked settings |
| Performance management | 0–100 %, up to 16 color-linked settings |
| Engraving function | 256 grayscale image processing |
| Positional accuracy | 0.254 mm or 0.1 % of the movement (whichever is greater) |
| Z-axis | Manual |
| Resolution (DPI) | 125, 250, 300, 500, 600, 1000 |
| Interfaces | 10Base-T Ethernet USB-A 2.0 (max. 32 GB, FAT) USB-B 2.0 (PC Connection) |
| Focus lens | 100 W: Standard 2″, optional 3″ 130 W / 150 W: Standard 3″, optional 2″ |
| Display | 4-line LCD display with indication of file name, working time, power, speed and diagnostics |
| Security Standards | Class 1 laser according to EN60825 Laser Class 2 according to CDRH Machinery Directive 2006/42/EC Class 4 laser (with optional transmission module) |

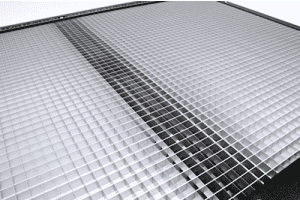

| Cutting table | Knife-shaped cutting bars with vacuum extraction and collection funnel |
| Power connection | 200–240 V AC, 50–60 Hz, max. 10 A |

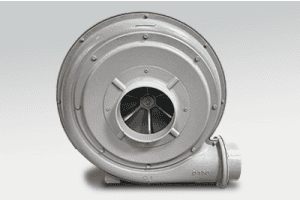

| Extraction | External suction required Min. 2,000 m³/h airflow 3.8 kPa negative pressure |
