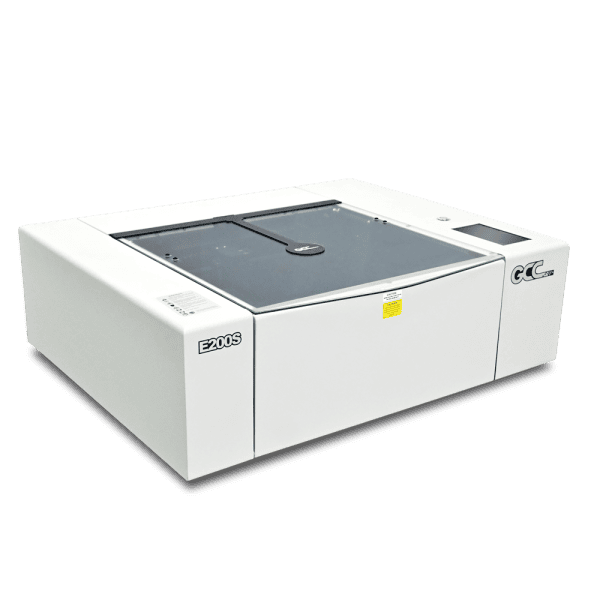

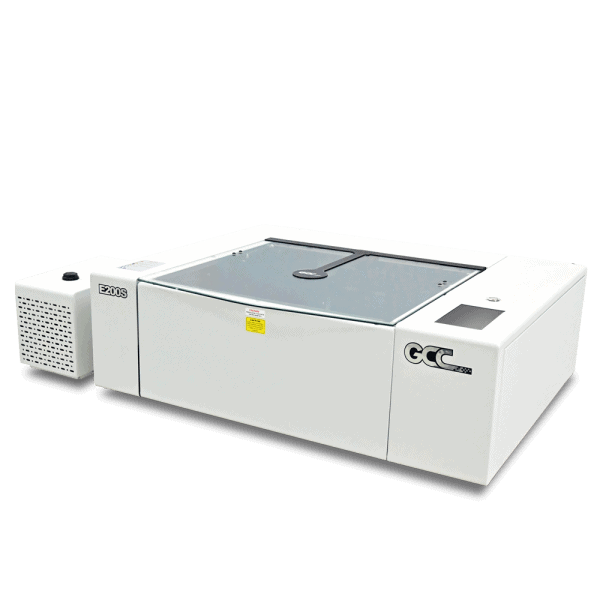

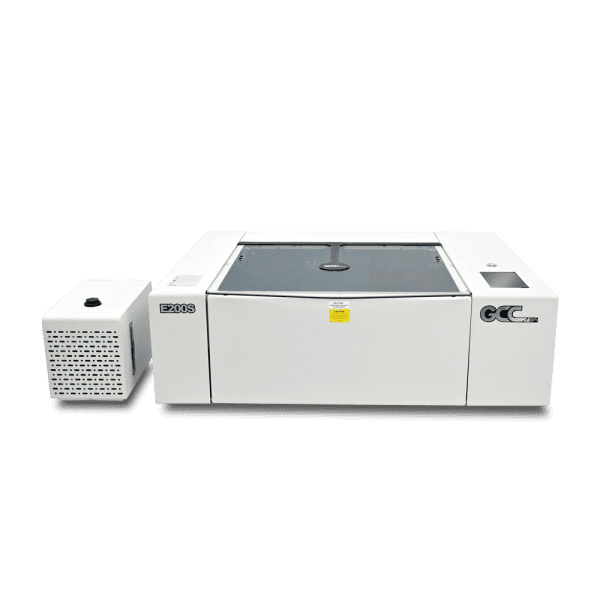

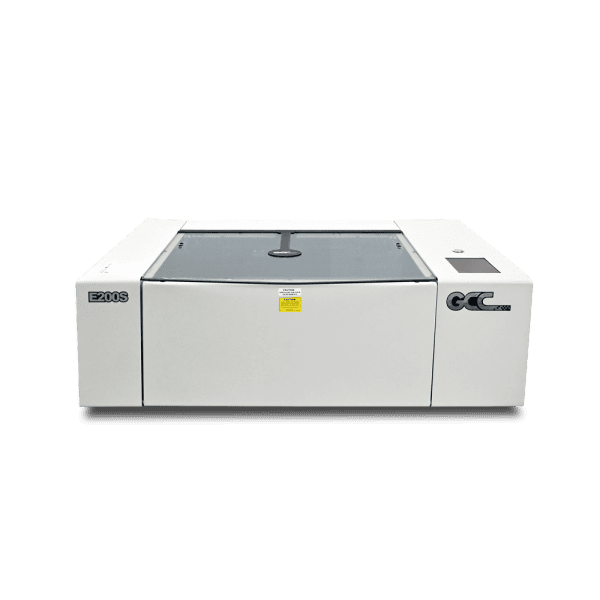

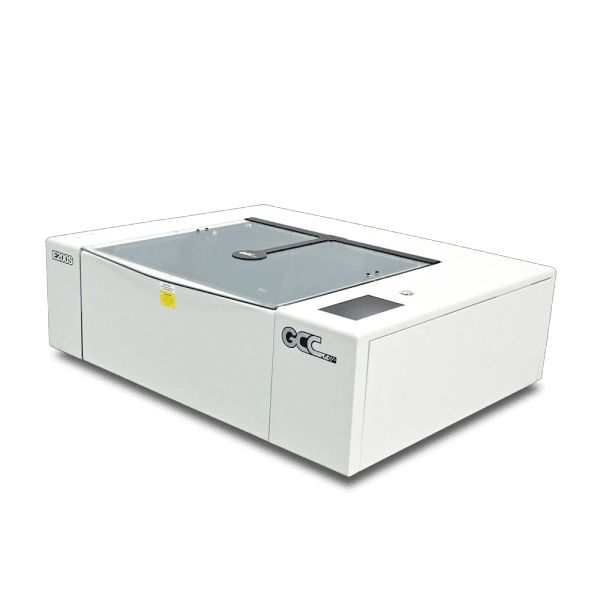

E200S Series Desktop Laser Engraver

Category | Brand GCC

Professional CO₂ desktop laser with a compact design and modern technology.
The E200S series offers easy operation, stable quality, and precise engraving results.
Ideal for workshops, training, and small-batch production.



Material Engrave Cutting Note
Acrylic ✔ ✔ Up to 10 mm
Wood ✔ ✔ Up to 3 mm
MDF ✔ ✔ Up to 3 mm
Cork ✔ –
Cardboard ✔ –
Paper ✔ – Engraving result depends on paper color
Gummy ✔ ✔ Up to 2 mm
Glass ✔ –
Ceramics / Tiles ✔ –
Marble / Granite ✔

Beschreibung

  • Professional latest-generation desktop CO₂ laser: The E200S series combines modern technology with user-friendly design.
  • Efficient workflows and high precision: Ideal for engraving and cutting applications in workshops, schools, and small-batch production.
  • Multiple model variants for different requirements: E200S, E200SL, and E200SM with tailored equipment.
  • Consistent quality and high safety: Designed for reliable operation and clean results.
  • Compact design with professional features: Perfect for high-quality engravings with limited space.
E200S Series – Technical Data
Workspace and Mechanics
Workspace 510 × 330 mm
Max. workpiece size with cutting table (W × L × H) 520 × 340 × 20 mm
Max. workpiece size without cutting table (W × L × H) 505 × 340 × 76 mm

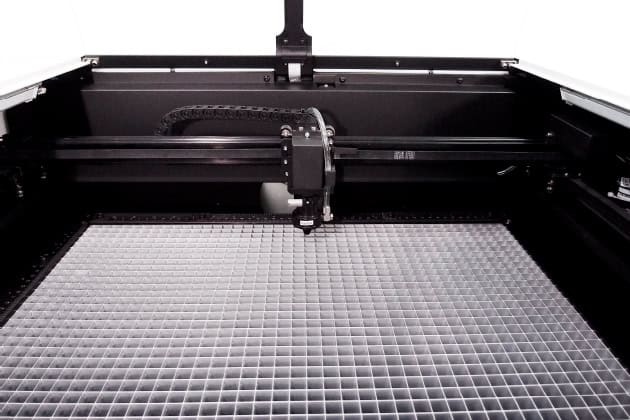

Work desk Standard slat cutting table
Dimensions (W × D × H) 915 × 780 × 300 mm
Drive system DC Servo System with Closed-Loop Control
Max. working speed 0.51 m/s
Max. cutting thickness 10 mm
Laser, performance and equipment
Laser source Sealed CO2 laser
Laser power E200S: 40 W Glass Tube
E200SL / E200SM: 30 W metal tube

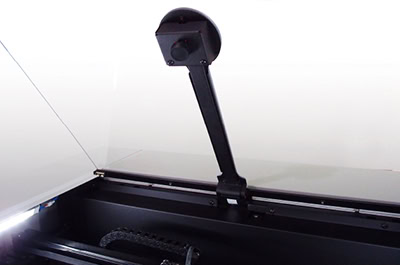

CCD camera E200S: Standard, accuracy ± 4 mm
E200SL / E200SM: not available
Focus lens Standard 1.5″
Resolution (DPI) 250, 380, 500, 760, 1000
Speed control 0.1–100 %, up to 5 color-linked speed parameters
Performance management 0–100 %, up to 5 color-linked performance parameters
Operation, interfaces and cooling

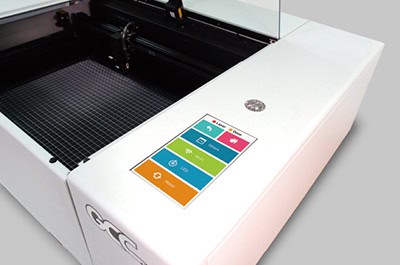

Control panel 7″ Touchscreen
Interfaces USB 2.0, 10Base-T Ethernet
Connection E200S: WLAN, Ethernet, USB
E200SL / E200SM: Ethernet, USB

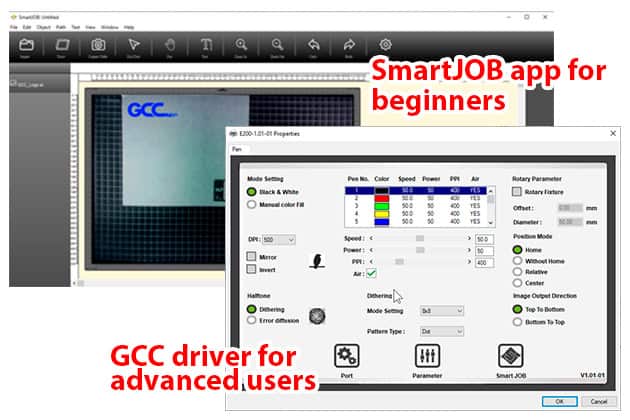

Operating systems E200S: MS Windows, macOS (SmartJOB)
E200SL / E200SM: MS Windows

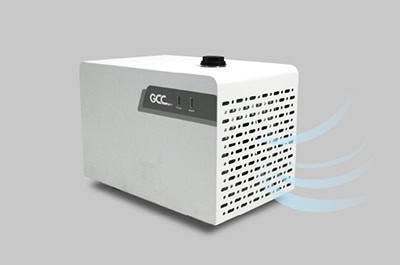

Cooling E200S / E200SL: Water-cooled
E200SM: Air-cooled
Air support Integrated compressor, optional external high-performance compressor
Options Blue laser 10 W, 450 nm (optional)
Safety and operational requirements
Security Standards Laser Class 1 (EN 60825-1)
Class 2 Laser (CDRH)
Laser Class 4 (for blue laser, optional)
Power connection 100–240 V AC, 50–60 Hz, max. 15 A
Exhaust system External extraction required, min. 300 m³/h, negative pressure 2.5 kPa (e.g., Pure-Air PA-300)



Technical Data Sheet (PDF)
