Die Funktion "Drag-N-Play" reduziert komplexe Einrichtungsvorgänge erheblich und ermöglicht es dem Benutzer, den Objektivschlitten direkt zum Startpunkt eines Auftrags zu ziehen.
Setzen Sie auf die Schneidtechnologie der GCC LaserPro X Serie, die für den professionellen Einsatz konzipiert und entwickelt wurde.
Der GCC LaserPro X500III ist mit zahlreichen benutzerfreundlichen Funktionen ausgestattet und bietet eine hohe Produktleistung in Bezug auf Haltbarkeit und Machbarkeit. Das Modell X500III kombiniert Schneid- und Gravierfunktionen und bietet dem Anwender ein vielseitiges System.
X500III | |||||
---|---|---|---|---|---|
Laser Source | 80W | 100W | 130W | 150W | |
Sealed CO2 Laser | |||||
Laser Cooling | Water Cooled | ||||
Working Area | w/o Honeycomb Table | 51 x 36 in. (1300 x 916 mm) | |||
with Honeycomb Table | 50.3 x 35.2 in. (1280 x 896 mm) | ||||
Max. Part Size
(L x W x H)
|
w/o Cutting Table | 52.9 x 36.0 x 2.1 in. (1346 x 916 x 55 mm) | |||
Doors Open | 52.9 x ∞ x 1.1 in. (1346 x ∞ x 30 mm) | ||||
with Honeycomb Cutting Table | 48.8 x 32.2 x 1.1 in. (1240 x 818 x 30 mm) | ||||
with Grid Cutting Table |
52.1 x 35 x 1.1 in. (1325 x 889 x 30 mm) | ||||
Dimensions | 74.8 x 55.1 x 47.2 in. (1900 x 1400 x 1200 mm) | ||||
Driving Motor | Closed-loop DC servo control | ||||
Maximum Motor Speed | 40 IPS | ||||
Speed Control | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) | ||||
Power Control | Adjustable from 0~100% (Up to 16 color-linked power settings per job) | ||||

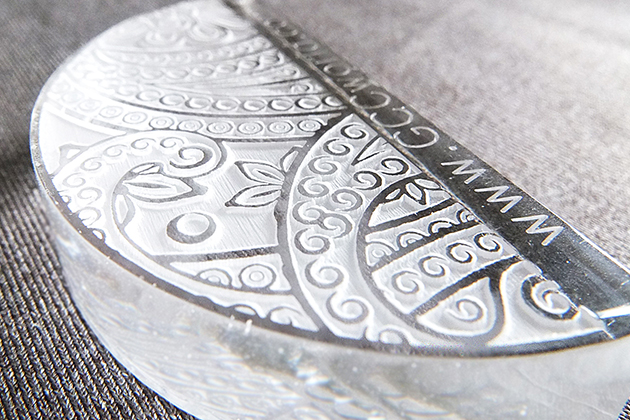

Engraving Capability | 256-level gray scale image processing capability | ||||
Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater | ||||
Z-Axis Movement | Manual | ||||
Resolution (DPI) | Available 125, 250, 300, 500, 600, 1000 | ||||
Interface | 10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer |
||||
Focus Lens | Standard 2",Optional 3" | Standard 3",Optional 2" | |||
Display Panel | 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus. | ||||
Safety | Class I Laser Product Compliant with EN60825 Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module |
||||
Cutting Table |
Knife-shaped cutting bars with down vacuum and scrap collecting funnel |
||||
Facility Requirements | |||||
Operation Voltage | 200-240VAC, 50/60Hz auto switching, Max.10A | ||||
Fume Extraction System | External exhaust system with minimum flow rate 2160m3/h (CFM 1273 ft3/h) is required,2.5kPA negative pressure (Pure-Air PA-2400FS @ 8" exhaust port) | ||||
*Speed is not equal to throughput. See dealer or visit www.GCCworld.com for more details. |
